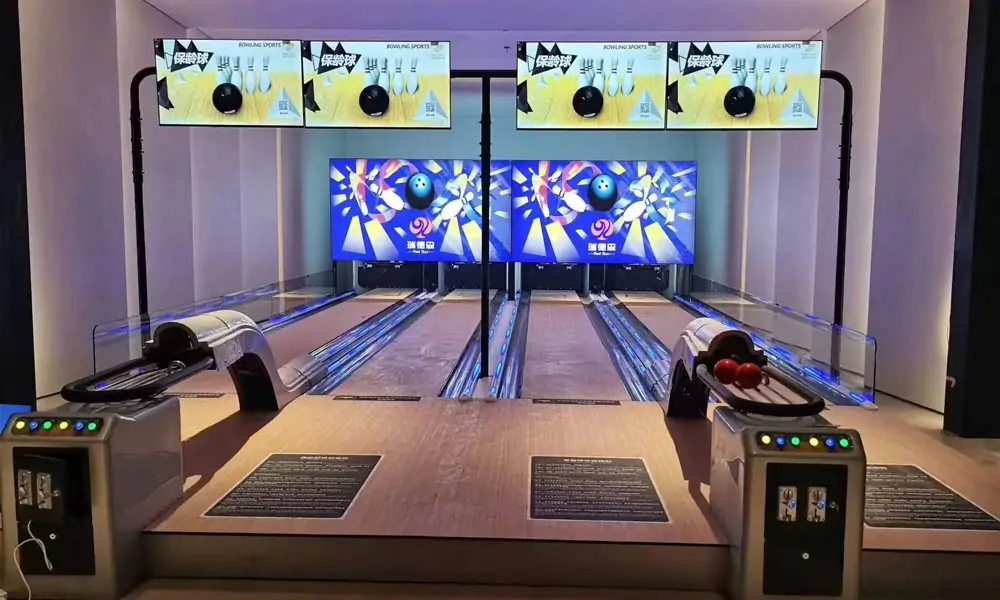

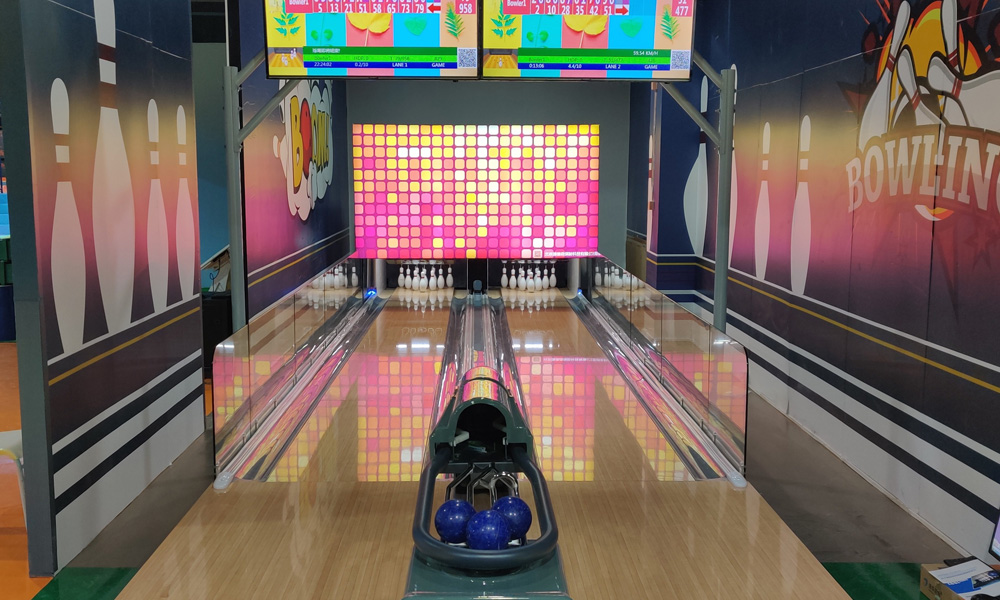

Many venues require a bowling alley where parents and children can play together. Mini bowling was developed to meet this need. The balls and pins in mini bowling equipment are scaled down to the same scale as those used in adult bowling, as are the lanes and ball return system. Mini bowling follows the same rules and gameplay as adult bowling.
Red Sun Bowling has been manufacturing mini bowling equipment for over a decade. Red Sun mini bowling equipment offers consistent quality, sophisticated technology, and reliable after-sales service. Red Sun Bowling is the right choice for you.

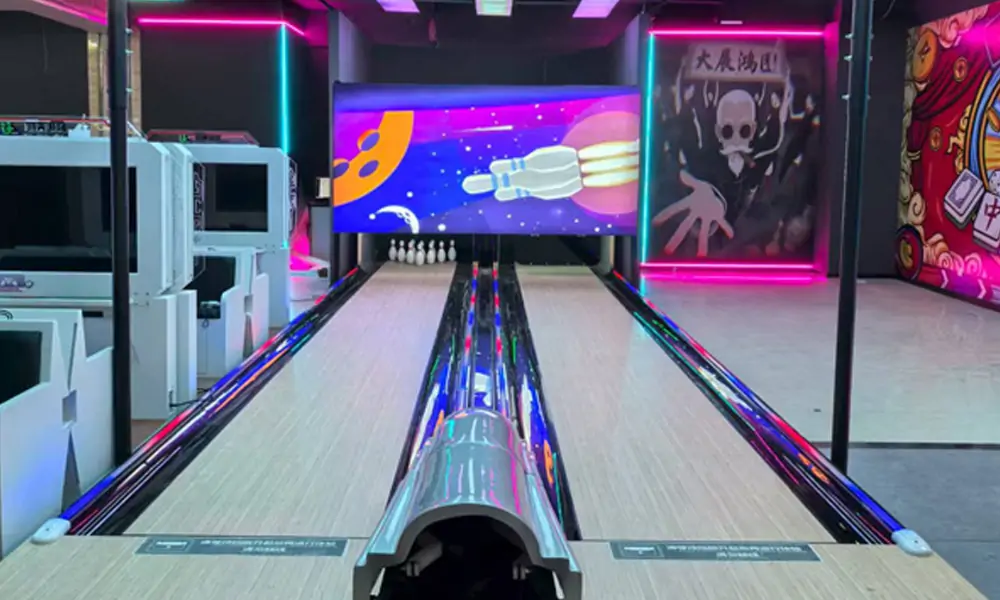

The Mini Bowling Lane width measurement is 757mm and length measurement is 1800 mm each panel or 3600 mm each panel.
The rolling area length is 8550mm and approach area length is 2410 mm length.

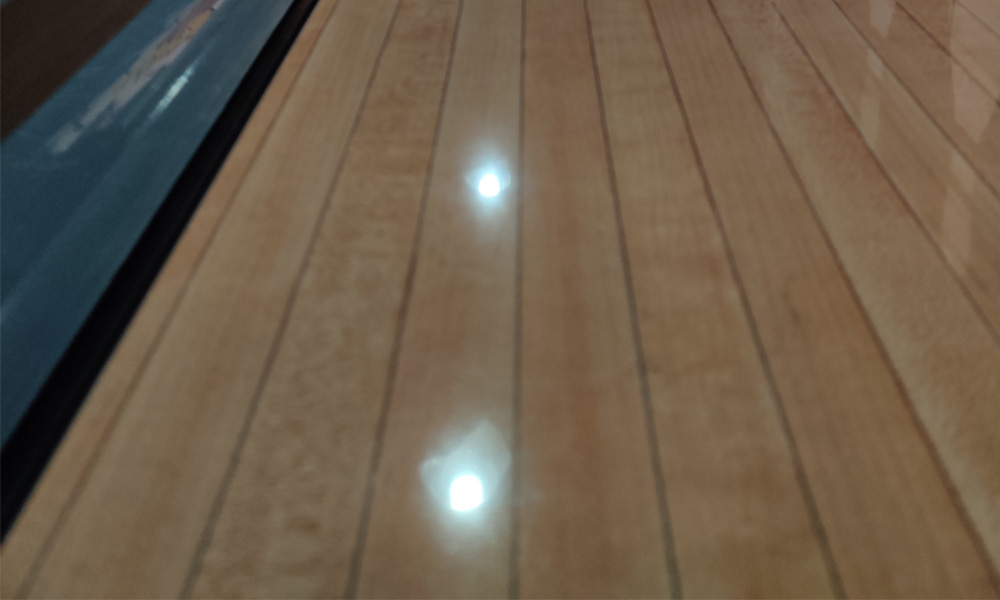

Two lane panels are typically combined to form a complete bowling setup, ensuring smooth ball movement and accurate scoring. The synthetic material used offers durability and easy maintenance, making it ideal for both recreational and competitive play.

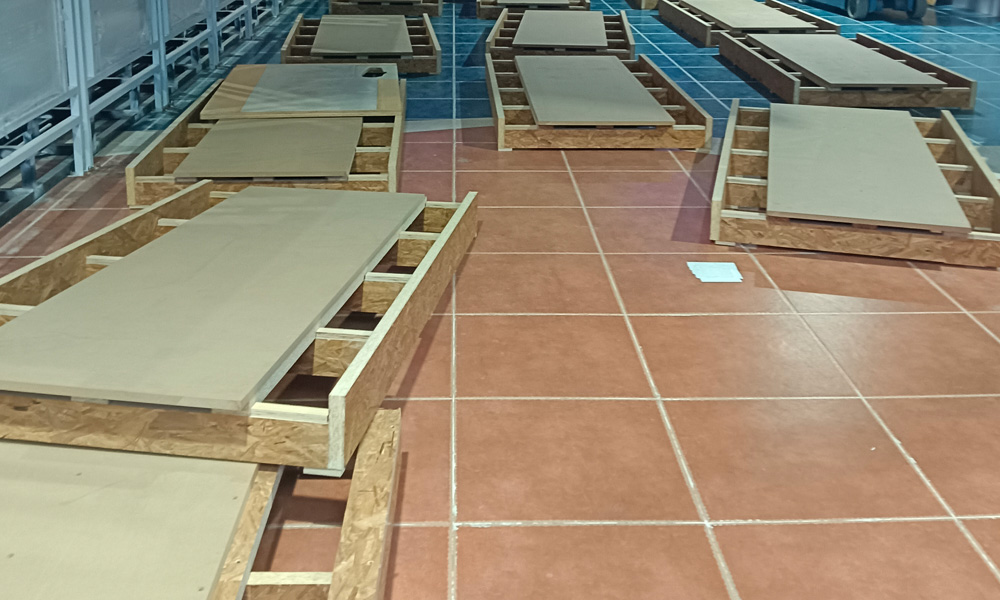

The lane bed install module make of Moisture-proof and deformation-resistant OSB board (thickness 38mm) and High flatness and strong stability MDF panel (thickness 24mm)
These materials decide the bowling lane foundation Durable and not easy to deform

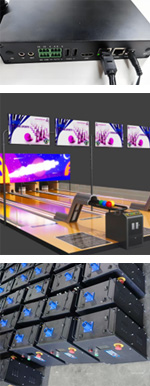

The scoring system composed of scoring computer (two lane share one set),Scoring drop Screen, 485 signal transfer box,Net box and Net cables.

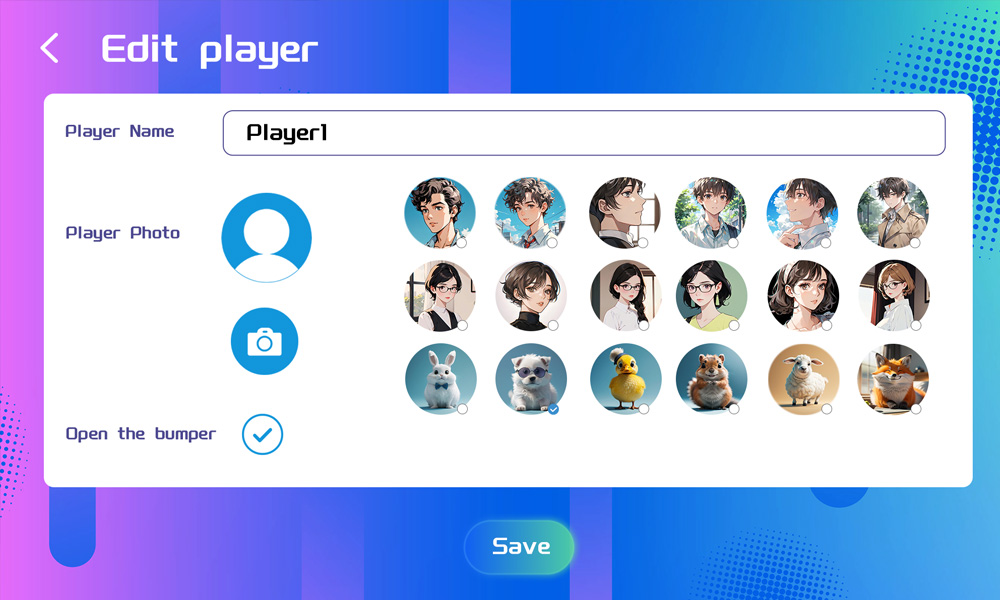

The scoring software can edit player name,player image, and more player in same bowling lane.
The scoring include “Strike”,”Clear Game”,”Gutter” different situation when play.
Correspond to different play situation the scoring software show the different Interesting and visual animation.

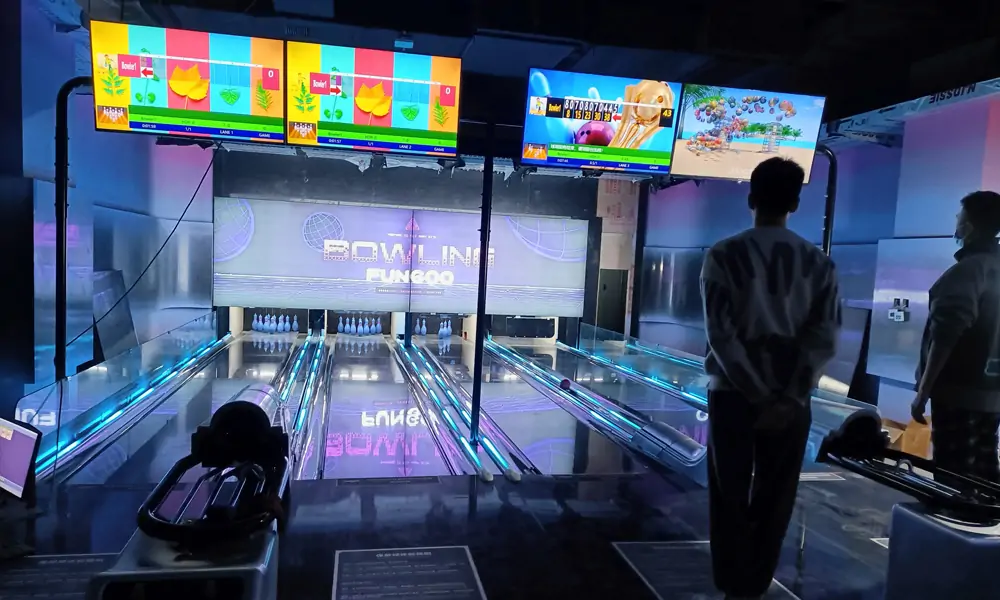

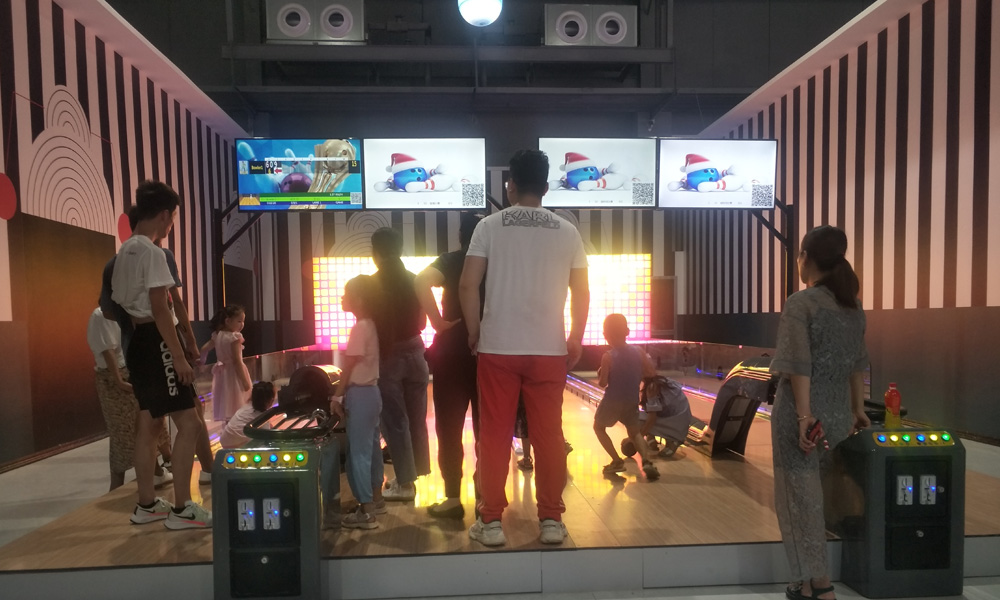

The mini scoring drop screen commonly install on the steel tube stand 1.1 meters before the player foul line site.

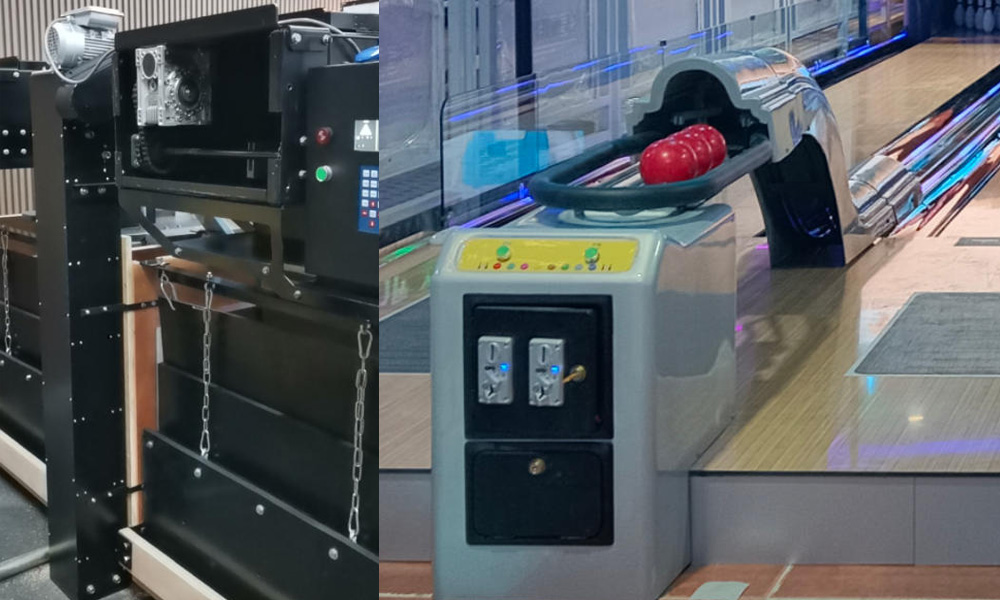

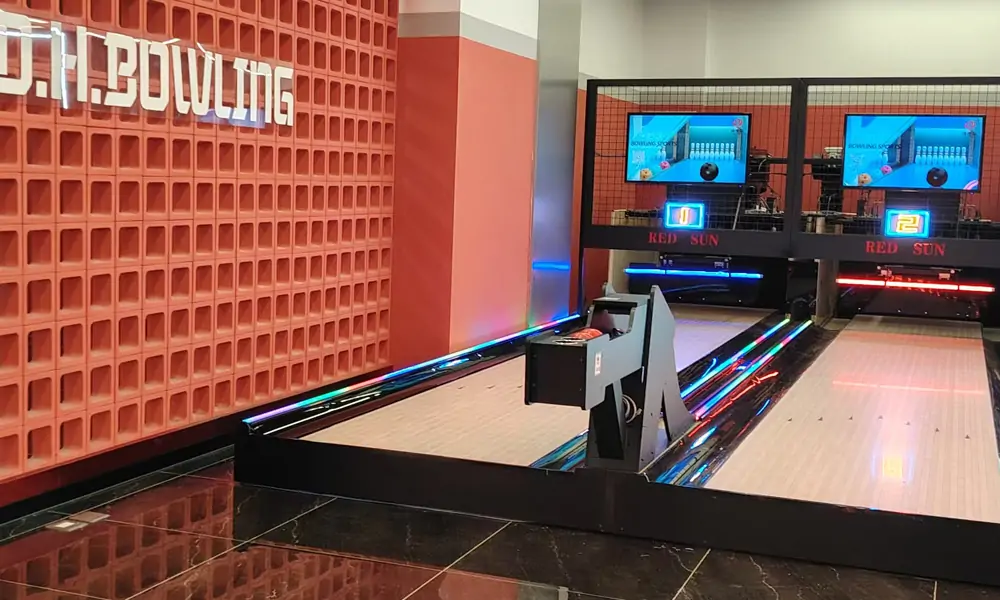

Ball lift device Ball Rack and Ball Hood
Mini Bowling lane ball return process is the when the ball pay to the pin area,it will roll to the ball lift machine. Lift machine will lift the ball to almost 1.7 meters height place and release it.

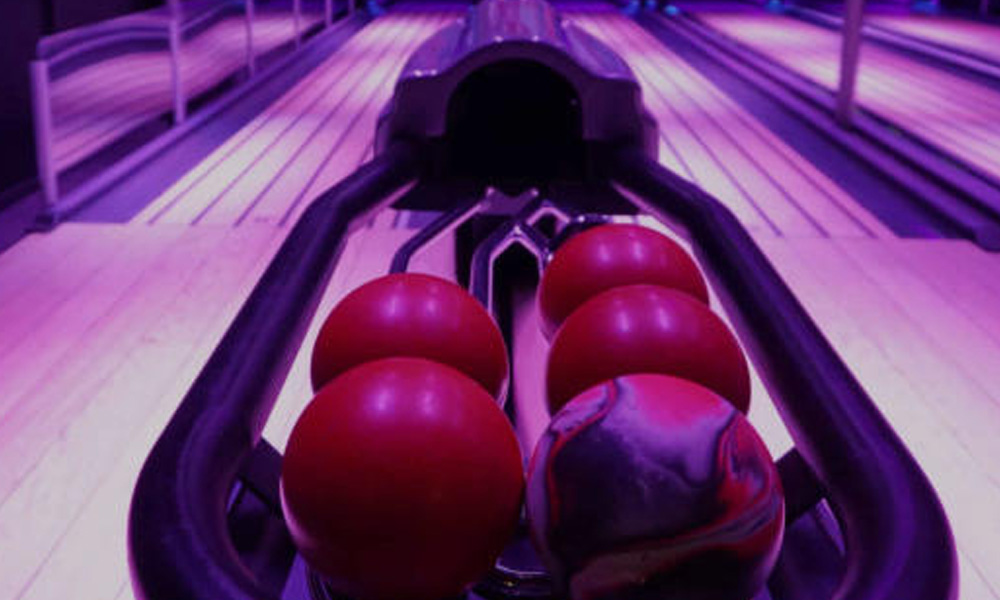

The mini bowling ball will follow the curve under the action of gravity accelerate and roll back to the ball track place.(the approach area ball rack place) The mini bowling lane can be open the game models:Coin-operated startup,Swipe membership card start up and Management computer control each lane start up.
The bowling ball materials is ABS plastic , the weight is 1.18 KG and the diameter of mini ball is 12 cm.
The mini bowling pin height is 18.28 cm, the bottom diameter is 2.86 cm and the mini pin abdomen diameter is 6 cm.
| No. | Group | Description | Qty | Item Pictures | Remarks |
|---|---|---|---|---|---|
| 1 | Lane Parts | Synthetic lane USBC approved | 4 |
 |
include Appoach, Roll Ball Area Panel, Infill Panel etc and relative hardware |
| Lane bed (MDF) and Sub foundation parts | 2 |
 |
Include I-beam, wedge, screws, pads, etc | ||
| 2 | Gutter & Capping with LED Light | PVC Gutter | 8 |
 |
2 runs/lane |
| PVCSingle capping | 8 | 2 run/lane | |||
| Front adaptor | 8 | 1piece /lane | |||
| 3 | Red Sun String Bowling Capital Equipment | Auto String pinsetter assembly | 4 |
 |
Include pin string system, electronic control box, ball accelerator, kickback, etc |
| Ball return system | 2 |
  |
Ball Lift,Ball Trach,Ball Rack,Ball Hood & Coin box | ||
| 4 | Red Sun Scoring System | Scoring console and Overhead monitor | 2 |
 |
Includes 50" LED monitor, Scoring Mini Computer,Net Exchange Box,Scoring Singnal Transfer box,Drop Screen Stand. |
| Electronic Control Box | 2 |
 |
the control box include the power board,I/O board.Function Board and Main Board | ||
| 5 | Management System | Management system with New 19" LCD Monitor | 1 |
 |
With computer, printer, net switch, cashier etc to manage scoring and accounting |
| 6 | Masking | Light Case Device | 2 |
 |
Masking Stand,Masking Frame ,Masking LED light,Masking Light case cover |
| 7 | Accessories & Miscellaneous | House pins | 44 |
 |
10 pcs/lane; Additional 4 pcs as the spare parts |
| House balls | 8 |
 |
4 pcs/lane | ||
| Lane duster | 1 |
 |
1 set per centre | ||
| Pinsetter spare parts | Some | No extra charge |
Leave your contact information, Red Sun Bowling will give the detailed reply within 24 hours.
